From industries large or small, to the IoT gateways developers, IoT solution providers and Enterprise customers we bridge your IoT connection from long range to deep indoor places.

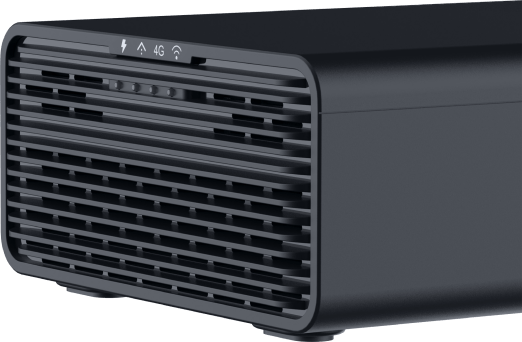

Dusun Pi is an open source IoT gateway created for both indoor and outdoor IoT deployments in healthcare, home and industrial automation, and more. Very user-friendly and convenient for IoT developers at all stages, from Prototype to mass production. No vendor lock-in.

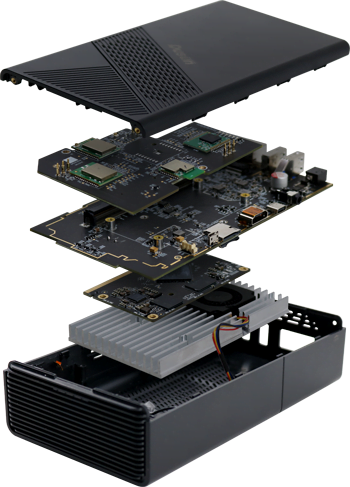

Modular design facilitates optimal configuration for a wide spectrum of IoT projects.
Supporting all major OS including, Linux, Ubuntu, Debian, OpenWRT, and Android.
ARM architecture CPU, Up to RK3568,
Up to LPDDR4 8G and 128GB eMMC,
Up to 512GB storage with SSD support.
Multiple wireless protocols including: Zigbee 3.0, BLE 5.0, Wi-Fi 2.4/5G,and Matter, Thread.
Ethernet, USB3.0, HDMI, MIPI-DSI, DP, SPDIF, SDMMC, SPI, UART, I2S/PCM(2ch)/TDM(8ch), PWM, ADC, CAN, GPIO and more.
MQTT 3.1.1, Trust Zone,
Tamper Detection,
Hardware security via ATECC608.
Remarkable Computing Power and Ultra Storage
Dusun Pi gateway adopts a Rockchip RK3568 processor, based on ARM Quad-core Cortex-A55 core, 64bit, 2GHz.
It also comes with large storage: 8GB dual channel 64Bit LPDDR4 RAM; Up to 128GB high-speed eMMC with an additional SSD support.
Data Transmit from Long Range to Deep Indoor Places

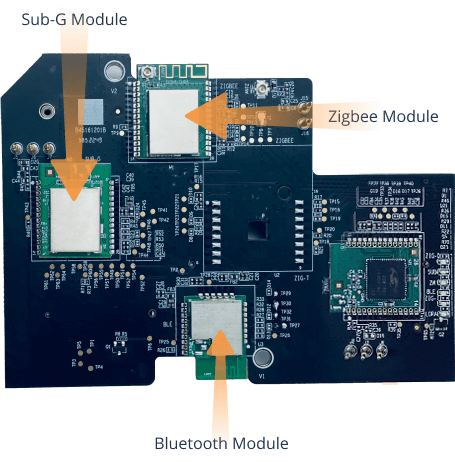

Dusun Pi gateway allows you to choose the built-in wireless communication modules for any of those options. Dusun Pi connects Wi-Fi, Ethernet and LTE and also has Bluetooth, ZigBee, LoRaWAN, Cellular, Matter, Sub GHz, Thread modules available. What’s more, it comes with rich interface including RJ45, DALI, IO and more.
Open SDK and Firmware for Rapid Development
Dusun Pi Gateway is specifically designed for the IoT developer to customize the firmware logics. The developer can build the custom firmware from the bottom layer of the hardware. Dusun Pi Gateway aims to accelerate IoT Gateway development with preintegrated, comprehensive, and fully documented out-of-the-box guidance and support.

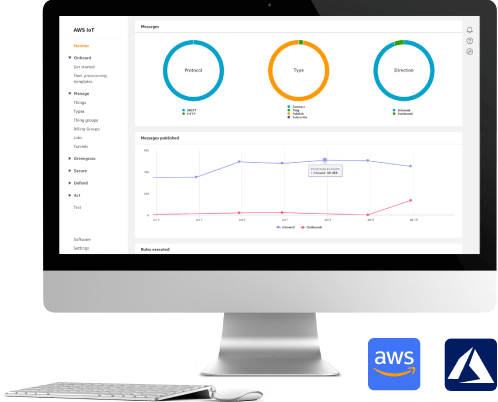

Easy Integration with IoT Platforms
As an out-of-box IoT Gateway. Dusun Pi Gateways can easliy integrated with popular IoT applications cloud platforms, which makes it easy for you to build scalable IoT projects that collect, process, analyze, and act on data without having to manage any infrastructure. This helps your only focus on building solutions that deliver value to both your businesses and your consumers.
Industries and Use Cases
Smart Home/Appartment
Building Automation
Asset tracking
Healthcare
Smart Agriculture
Retail
Manufacturing
Education
Automotive & Transportation
Create a strong and reliable foundation for your IoT projects with Dusun Pi gateways
CE, FCC, IC, FAC, WPC, KC, NTC, RCM, SRRC and more certifications.
Fast simple delivery
Batch order within 4 weeks
Timely FAE support for pre-sale, in-sale and after-sale services
Strong technical support for you requests
