In today’s rapidly advancing technological landscape, many companies find themselves with industrial equipment purchased a few years ago, which, despite their long lifespan and significant cost, may lack modern IoT capabilities. Upgrading to entirely new equipment can be prohibitively expensive, leaving businesses seeking cost-effective solutions to enhance their existing assets.
Considering such situations, Dusun IoT has launched DSGK-061 AI Edge Computing Box, a versatile tool designed to modernize industrial equipment. This cutting-edge device is designed to upgrade current industrial equipment, enabling remote management, local visualization for no-screen machines, and easy IoT integration for traditional HMI systems. With the DSGK-061, companies can enhance their operations without incurring the high costs of new equipment.
Key Features of DSGK-061 AI Edge Computing Box
Robust Hardware and Connectivity
- Processor: High-performance Quad-core ARM Cortex-A55 CPU for efficient processing and lightweight AI tasks (Up to 1 TOPS NPU).
- Memory: Up to 4GB LPDDR4 and 32GB eMMC to handle complex computations and multitasking, with a TF card slot for expanded application and data storage.

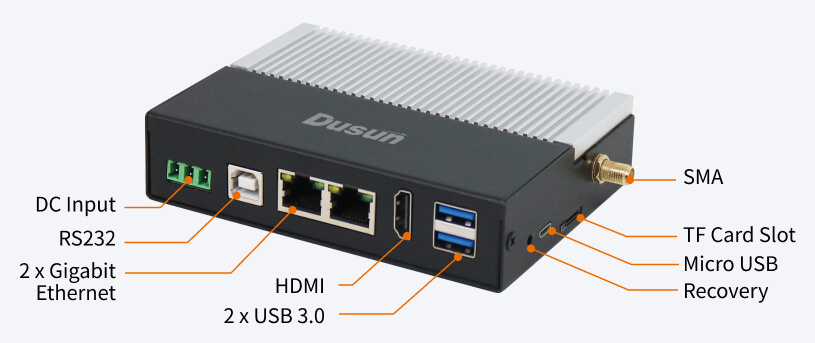

- Connectivity: Multiple internet access options including 1000Mbps Ethernet WAN and LAN RJ45 ports, two USB 3.0 Type-A ports, a micro USB socket for upgrades, an HDMI port, one SMA antenna for WiFi 2.4GHz + Bluetooth 4.2 connectivity, an RS-232 type-A terminal, and 8 GPIOs (I/O).
Versatile Integration and Development Support
- Protocol Compatibility: Supports a wide range of mainstream protocols, ensuring easy integration with various IoT devices and cloud services.
- Remote Management Ready: Pre-configured VNC (Virtual Network Computing) software to enable remote access and management.
- Secondary Development: Comprehensive SDKs and open APIs for custom application development. Supports Docker for easy application porting and embedded algorithm model tools for local AI computation.
- Security: Advanced encryption technologies, firewalls, and secure access protocols to ensure data integrity and security.
Industrial-Grade Design
- Durability: Rugged construction designed to withstand harsh industrial environments, with an operating temperature range from -25℃ to 65℃.
Applications and Case Studies of the DSGK-061 AI Edge Computing Box
Remote Control and Intelligent Upgrade of Traditional Industrial HMI Equipment
For enterprises that initially invested in closed-source operating systems and traditional HMI equipment with limited open-source capabilities, DSGK-061 AI Edge Computing Box offers an innovative solution that integrates the VNC (Virtual Network Computing) remote control software, enabling the intelligent upgrade and modernization of traditional HMI systems.
The DSGK-061 features dual USB 3.0 ports for high-speed data transmission, a single TTL UART interface for stable serial communication, and an HDMI OUT interface for high-definition video output, providing a clear visual experience for industrial display and control. With built-in Wi-Fi and WAN network interfaces, it seamlessly integrates into the customer’s cloud architecture, supporting remote access and control functions.
By connecting HMI devices through the DSGK-061 and utilizing its built-in VNC Server, users can remotely access the virtual system of the HMI device via TCP/IP protocol. This capability facilitates flexible secondary development, including application innovation and in-depth system function calls.
Local Visualization, Remote Control, and Intelligent Upgrade of Screenless Industrial Equipment
For early-stage industrial equipment lacking display screens and sufficient hardware interfaces, the DSGK-061 AI Edge Computing Box offers significant enhancements. Its HDMI interface supports local visualization functions with a refresh rate of up to 60Hz and a maximum resolution of 4096×2304 pixels, suitable for applications in medical, industrial control, and other fields.
Additionally, the DSGK-061 supports the TCP/IP protocol and provides robust remote management capabilities. Users can remotely access, control, configure, monitor, and maintain industrial equipment through the network, eliminating the need for on-site presence. This integration allows traditional screenless industrial equipment to achieve efficient and stable remote control and monitoring functions.
The DSGK-061 also supports QT toolchain secondary development, offering rich graphical interface elements and powerful cross-platform capabilities. Users can connect traditional screenless industrial equipment via TCP/IP, USB 3.0, serial ports, and Modbus, facilitating the digital and intelligent transformation of industrial equipment into IoT-based systems.
As a Cloud Terminal or Thin Client
The DSGK-061 AI Edge Computing Box can function as a thin client, leveraging the RK3568 main chip and supporting both traditional VDI (Virtual Desktop Infrastructure) architecture and the higher-performance IDV (Intelligent Desktop Virtualization) architecture. This capability makes it advantageous for various product applications.
Running on the standard Android 11 system, the DSGK-061 supports video output through an HDMI interface and can connect to external display devices. It features two USB 3.0 interfaces for expanding to external devices such as a mouse, keyboard, and speakers. With support for both Wi-Fi and wired network connections, the DSGK-061 ensures flexibility in connectivity.
Equipped with a built-in GPU and a 1 TOPS NPU, the DSGK-061 can handle lightweight local 3D rendering and AI algorithm functions on the edge. It is ideal for use in electronic classrooms, call centers, corporate offices, medical care, financial security, and other fields where thin clients are beneficial.
The DSGK-061 AI Edge Computing Box stands out as a versatile solution for enhancing traditional industrial equipment, offering robust features for remote control, intelligent upgrades, local visualization, and thin client applications. This makes it an invaluable tool for modernizing industrial operations efficiently and cost-effectively.
Conclusion
The launch of the DSGK-061 AI Edge Computing Box marks a significant advancement in Dusun IoT’s offerings for industrial equipment modernization. With its robust hardware, versatile integration capabilities, and comprehensive support for remote management and intelligent upgrades, the DSGK-061 provides an effective solution for enterprises looking to enhance their existing systems without incurring the high costs of replacement. Whether for traditional HMI equipment, screenless industrial devices, or as a thin client in cloud-based applications, the DSGK-061 stands out as a powerful and flexible tool. To learn more about the DSGK-061 and how it can benefit your business, visit our product page or contact us directly.
