Professional Edge AI Box for Digitalization Upgrade & Industrial Control

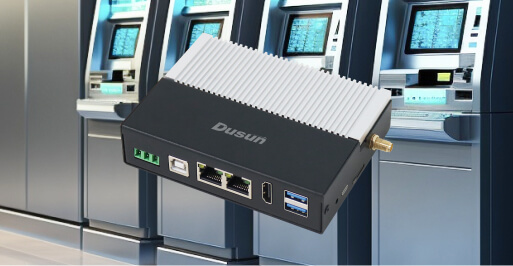

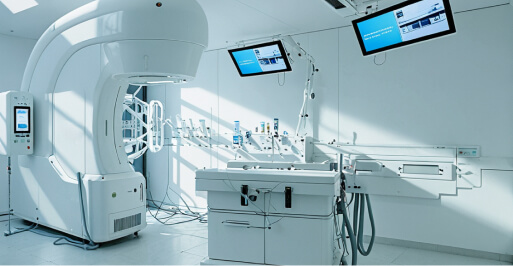

DSGK-061 Smart VNC Edge Computing AI Box has an integrated 1TOPS NPU that supports edge computing, enabling lightweight AI computation. It supports a rich set of interfaces and communication protocols (including dual Gigabit Ethernet, WiFi, Modbus, RS-232, USB3.0, HDMI, etc), and has a built-in VNC application that supports secondary development. It can be widely applied in HMI device secondary development upgrades, intelligent transformation of industrial control equipment, remote control, and thin client system construction, providing solutions for various fields such as smart retail, smart healthcare, and smart manufacturing.
Powerful ARM Quad-Core 64-bit Processor RK3568
The DSGK-061 Smart VNC Edge Computing AI Box is equipped with the RK3568 quad-core 64-bit Cortex-A55 processor, manufactured with a 22nm advanced process technology, with a maximum frequency of 2.0GHz. It also provides 1 TOPS AI computing power, ensuring outstanding computing capability and data processing speed. Not only does it guarantee stable operation of the device in complex industrial environments, but it also supports edge computing functionality, effectively reducing data transmission latency and improving system response speed. It can be configured with up to 4GB RAM and 32GB eMMC, meeting the application requirements for large memory and storage.
Built-in VNC Application for Flexibly HMI Device Smart Upgrade
The DSGK-061 Smart VNC Edge Computing AI Box has an embedded VNC (Virtual Network Computing) Application. HMI devices connected to the VNC Box with the embedded VNC Server service can directly access its virtual system through TCP/IP, enabling secondary development, including application development and calling system-level functions. This feature significantly reduces the cost of device upgrades, allowing enterprises to easily achieve remote monitoring and management of industrial equipment without the need to invest heavily in replacing expensive remote control devices.
Empower Screenless Devices with Local Visualization & Remote Control
For traditional screenless industrial devices, the DSGK-061 Smart VNC Edge Computing AI Box is specially equipped with an HDMI interface. Through this interface, local visualization can be achieved, with HDMI refresh rates up to 60Hz and a maximum resolution of 4096*2304, which is convenient for image viewing and analysis, meeting the special resolution requirements of medical and industrial control equipment. Additionally, combined with the VNC application, even traditional devices without screens can achieve remote control and monitoring, greatly improving the usability and management efficiency of the equipment.

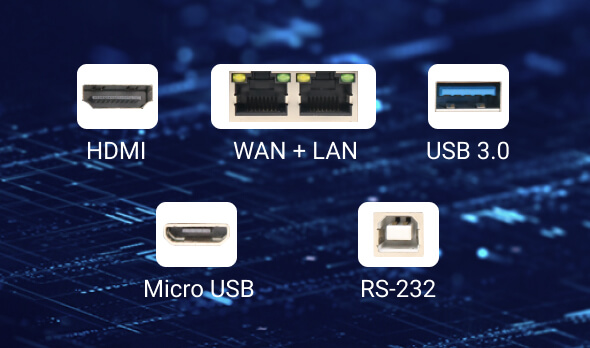

Abundant Interfaces

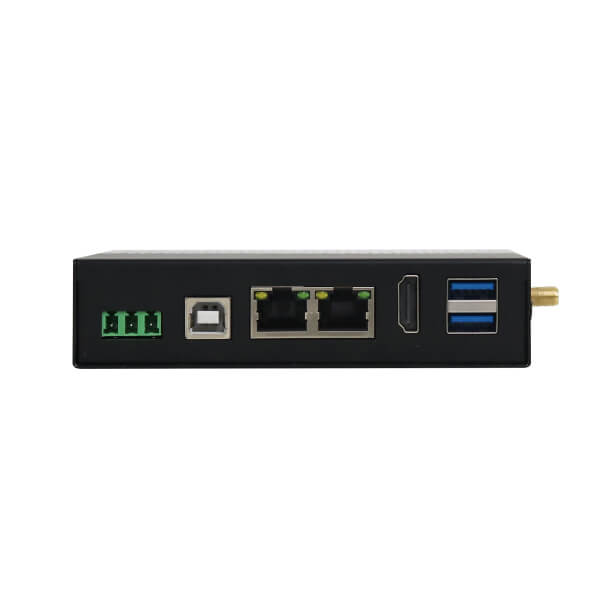

The DSGK-061 Smart VNC Edge Computing AI Box is equipped with a variety of interfaces, including HDMI, USB 3.0, TTL serial, LAN/WAN, and WiFi, to meet the connection needs of different devices (such as barcode scanners, cameras, data acquisition instruments, sensors, PLCs, and RTUs). These interfaces not only enable fast data transmission and seamless integration between devices, but also enrich the functionality of the device and solve the problems of insufficient interfaces or incompatible drivers in the original HMI devices.

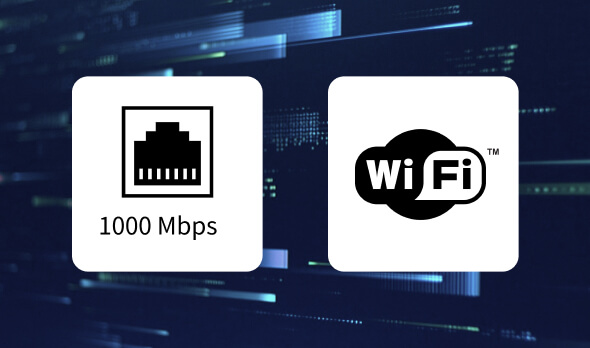

Stable Connection Support
It supports Gigabit Ethernet and WiFi5 communication methods, ensureing stable networking in various scenarios.
Encrypted Transmission for Data Security
VNC supports symmetric and asymmetric encryption technologies to ensure the security of remote access data transmission.

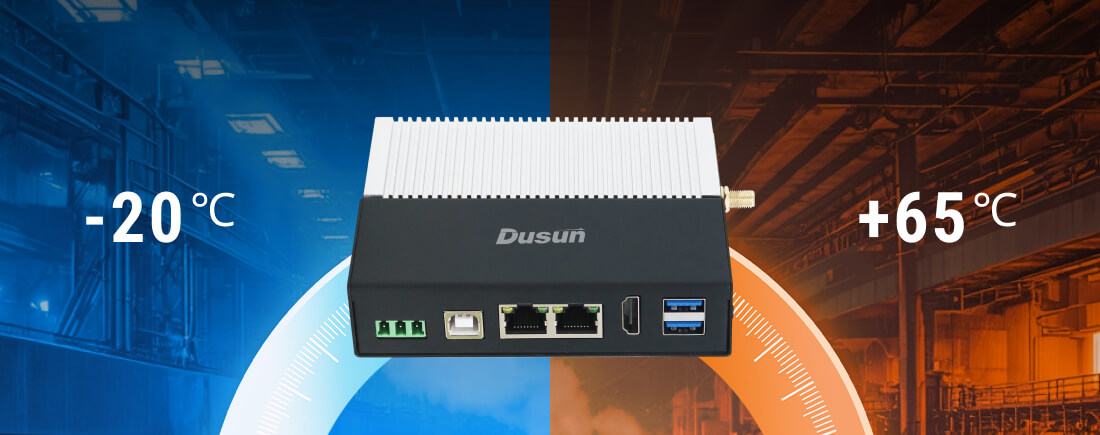

Industrial-Grade Standards for Harsh Environments
The DSGK-061 Smart VNC Edge Computing AI Box is designed to industrial-grade standards with an internal fan cooling system and excellent heat dissipation design, allowing it to operate reliably for an extended period in environments with temperatures ranging from -20°C to +65°C.
Highly Open Platform, Secondary Development Support
The DSGK-061 Smart VNC Edge Computing AI Box runs on the Android 12 operating system, which provides a highly open platform. Developers can freely install and customize applications, addressing the common challenges of closed systems and limited development capabilities in traditional industrial devices. The device supports Qt-based secondary development. Dusun offers rich development resources, including open-source SDKs and MQTT protocol support, as well as professional FAE team assistance to help partners overcome technical challenges during the development process.
Hardware Block Diagram of DSGK-061 Smart VNC Edge Computing AI Box
Parameters of DSGK-061 Smart VNC Edge Computing AI Box
| Category | Specifications |
|---|---|
| CPU | RK3568，Cortex-A55 Quad-Core |
| NPU | 1 TOPS |
| RAM | 4GB LPDDR4 |
| Flash | 32GB eMMC |
| Power | DC 24V: 3-way Phoenix head, wide voltage input 10~28VDC |
| System | Android11/ Debian11 |
| RTC | Support |
| Ethernet | 1000Mbps WAN port, 1000Mbps LAN port, RJ45 terminal |
| USB | ● 2 USB3.0, Type-A terminals ● 1 micro USB socket (for upgrade) |
| HDMI | 1 HDMI |
| TF | 1 TF card slot |
| Antenna | 1 SMA, for WiFi 2.4GHz+Bluetooth |
| RS-232 | 1 RS-232, Type-A terminals |
| GPIO | 8 |
| Recovery button | Support |
| VNC | Support |

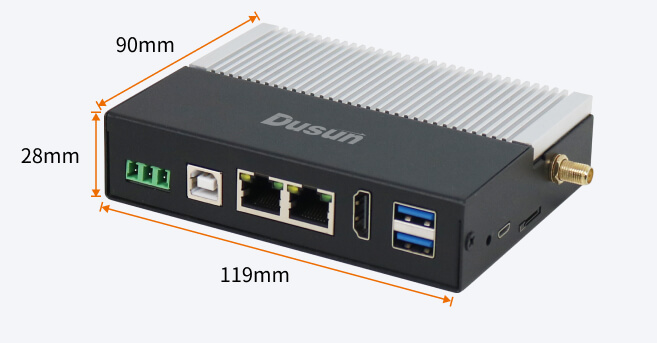

| Size | 119*90*28mm |
| Operating Temperature | -20℃ ～ 65℃ |
| Storage Temperature | -40°C ～ 85°C |
| Operating Humidity | 5% ~ 85% (no condensation) |
| Storage Humidity | 5% ~ 95% (no condensation) |
| Installation method | Bracket |
Wide Range of Application Scenarios

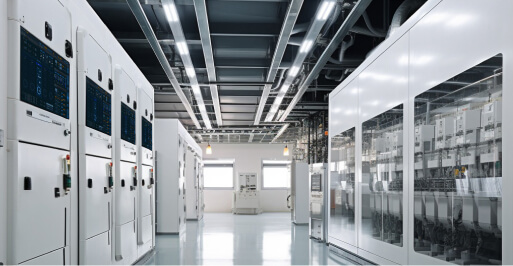

The DSGK-061 Smart VNC Edge Computing AI Box can be widely applied across a range of industries, including industrial automation, smart manufacturing, smart cities, smart retail, and smart healthcare. Whether it’s equipment monitoring on production lines, central control in smart factories, remote management of urban infrastructure, or remote control of retail store devices, the DSGK-061 Smart VNC Edge Computing AI Box can provide reliable and intelligent solutions to support enterprises’ digital transformation and smart upgrades.
