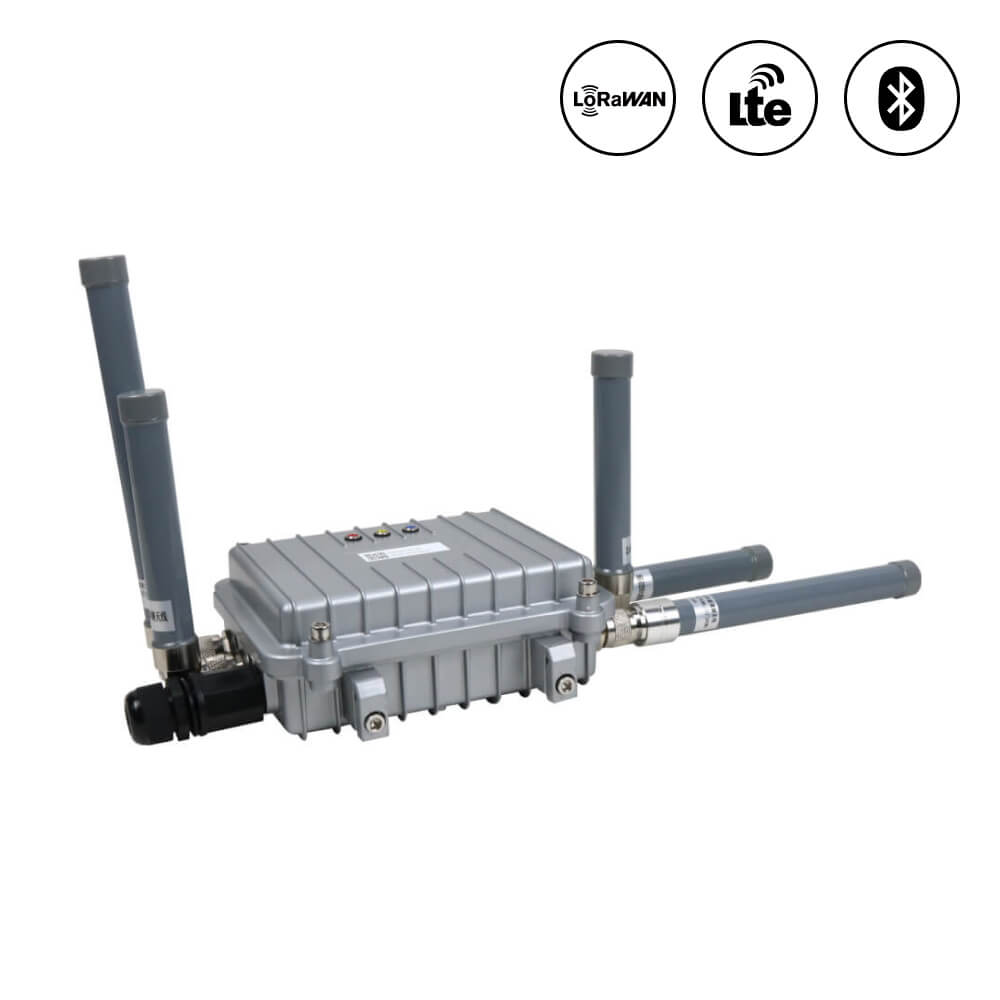

Quick View of DSGW-014-2 LoRaWAN 4G Gateway with LNS Integration
DSGW-014-2 LoRaWAN gateway 4G LTE empowers you to connect and control LoRaWAN devices seamlessly over high-speed LTE networks. The gateway receives data from LoRaWAN end devices, which communicate over long distances using low power, and transmits this data to network servers over the LTE 4G network. offering extensive coverage, energy efficiency, and enhanced data transmission reliability for scalable IoT deployments. This combination ensures robust connectivity and flexibility in diverse environments, making it ideal for smart city, industrial, and remote monitoring applications.
With enhanced security features by ATECC608B Hardware Encryption, the DSGW-014-2 LoRaWAN LTE 4G gateway offers a reliable and secure platform for your smart connectivity needs. A notable highlight of the DSGW-014-2 is the integration with two prominent LoRaWAN network servers: The Things Network (TTN) and Chirpstack LNS. This integration streamlines the process of managing your LoRaWAN devices and data, ensuring that your gateway is ready to serve your connectivity needs right out of the box.
Whether you’re managing smart agriculture, industrial automation, or other IoT applications, this gateway empowers you to harness the potential of dual connectivity, making your interactions smarter and more efficient.
Features of DSGW-014-2 LoRaWAN Gateway 4G with LNS Integration
Multiple Backhaul Connectivities
Capturing data from end LoRa devices and sends it to the cloud via Wi-Fi 2.4G, LTE Cat1/Cat M1, and Ethernet
Multi-Protocol LoRaWAN Gateway
Coming with Wi-Fi 2.4G, BLE 5.2, LoRaWAN, and GPS
Waterproof(IP66) and Robust Aluminum Enclosure
Features all-around IP66 Rating for protection from water and dust ingress, ideal for the harsh environments
High Capacity
Supporting receiving data from 8 end-devices simultaneously and supporting up to 1000 end-devices
Global LoRaWAN Frequency Plans
LoRa Frequency band support: RU864, IN865, EU868, US915, AU915, KR920, AS923, CN470
Hardware Overview of DSGW-014-2 LoRaWAN Gateway LTE 4G with LNS Integration
Dimensions and Package of DSGW-014-2-F Gateway
Parameter of DSGW-014-2 LoRaWAN 4G Gateway with LNS Integration
| CPU | Quad-core Cortex A35 |
| System | Debian11 |
| RAM | 2GB |
| eMMC | 32GB |
| Network Interface | • 1 * 10/100 Mbps WAN/LAN variable port • Supports CAT-5/CAT-5E for data transmission • Supports POE (voltage range 44-57V) |
| Indicator LEDs (RGB) | 1). Power 2). Network 3）LTE |
| Installation | Flat, Ceiling |
| Antenna | 2 * LTE, 1 * GPS, 1 * LoRa, 1 * Wi-Fi 2.4G |
| Hardware Encryption | ATECC608B |
| Operating Temperature | -20℃~65℃ |
| Storage Temperature | -40℃~85℃ |
| Operating humidity | 10%~90% |
| IP rating | IP66 |
| LoRaWAN | ● Frequency band support: RU864, IN865, EU868, US915, AU915, KR920, AS923, CN470 ● TX power up to 27dBm, RX sensitivity down to -139dBm @SF12, BW125kHz ● Range: 10KM maximum, open field ● Protocol: V1.0 Class A/Class C and V1.0.2 Class A/Class C ● LoRa antenna gain：3/5dBi optional ● LoRa Antenna Type： Omnidirectional ● LoRa working mode： Full/half-duplex (optional) |
| LTE Cat1(North American) |
● LTE FDD: B2/B4/B5/B12/B13 ● WCDM: B2/B4/B5 ● LTE FDD Data rate:10(DL)/5(DL) |
| LTE Cat M1 | Operation Frequency Band: 850/900/1800/1900MHZ Global:LTE:FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28 ● North America: LTETDD:B2/B4/B12/B13 ● LTE TDD:B39(for cat.M1only) |
Use Cases of DSGW-014-2 LoRaWAN LTE Gateway with LNS Integration
IoT Energy Monitoring
IoT Water Management
IoT Smart Agriculture
IoT Supply Chain
IoT Smart Parking
Development Resources of DSGW-014-2 SX1302 LoRaWAN LTE 4G Gateway with LNS Integration
| Development | ||
|---|---|---|
| [QUICK START] | DSGW-014 Outdoor LoRa Gateway SDK Quick Start Guide V1.1 | V1.1 |
| [SDK] | DSGW-014_SDK_V1.0 | V1.0 |
| [Firmware packaging] | DSGW014_debian11_release_AV1.1 | V2.1 |
| Tools | ||
|---|---|---|
| Burning tool] | AndroidTool_Release | |
| [Upgrade_tool] | DriverAssitant_v4.91 | V4.9.1 |
| Third-Party Software | ||
|---|---|---|
| [Node-RED] | Node-Red | |
| [Zigbee2Mqtt] | Zigbee2Mqtt Source Code & How To Install and Deploy[Dusun] | |
| [Docker] | docker | |
LNS Integration/Connectivity Model List of DSGW-014-2 SX1302 LoRaWAN LTE 4G Gateway
| Model | Hardware | Software | |||||||
|---|---|---|---|---|---|---|---|---|---|
| ·LoRaWAN ·BLE ·Wi-Fi ·GPS |
NS Embedded | NS cloud | |||||||
| DDR | eMMC | LTE | TTN | Chirpstack | Chirpstack | AWS IoT Core |
LORIOT | ThingsStack | |
| DSGW-014-2-F | 2GB | 32GB | ● | ● | ● | ||||
| Type | Region | Frequecy（MHZ） |
|---|---|---|
| -CN | China | CN470 |
| -EU | Europe | EU868 |
| -US | North America | US915 |
| -AS | Asia | AS923 |
| -AU | Australia | AU915 |
| -KR | Korea | KR920 |
| -IN | India | IN865 |
| -RU | Russia | RU864 |
LoRaWAN Gateway Secondary Development Support
Dusun IoT provides comprehensive, rigorously tested development resources, ensuring high reliability and efficiency. Our expert FAE team offers personalized one-on-one support for customers addressing technical challenges during LoRaWAN gateway secondary development, accelerating time-to-market and gaining a competitive edge.
- Mastery of mainstream wired and wireless IoT protocols for quick smart terminal connections and debugging
- Standard object model design and Luci local management tool for visual and rapid development
- Support Docker for application porting to expedite existing software/tools migration and debugging, cutting development costs and time
- Embedded algorithm model tools for easy local algorithm compilation and porting
- Open-source SDKs for deeper customization, allowing custom firmware to fit specific hardware or functional optimization
- Open APIs for developing software functionalities like data collection and device control
- Support for standard MQTT/HTTP protocols for seamless third-party cloud integrations
- Pre-installed AWS and Azure plugins for zero-code integration with mainstream cloud platforms
