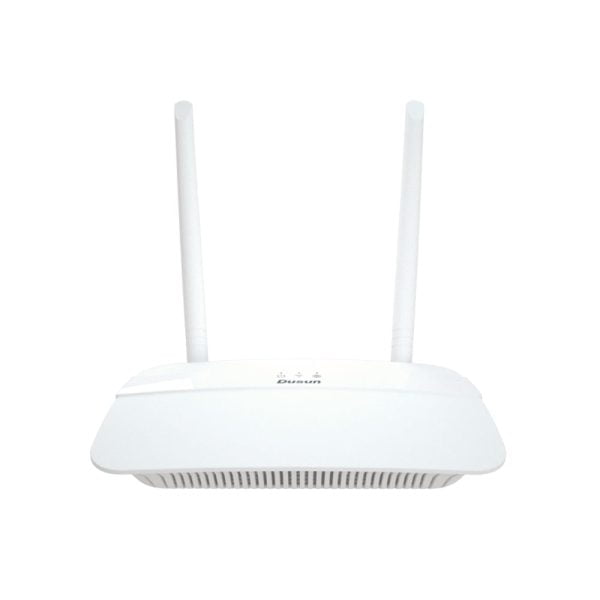

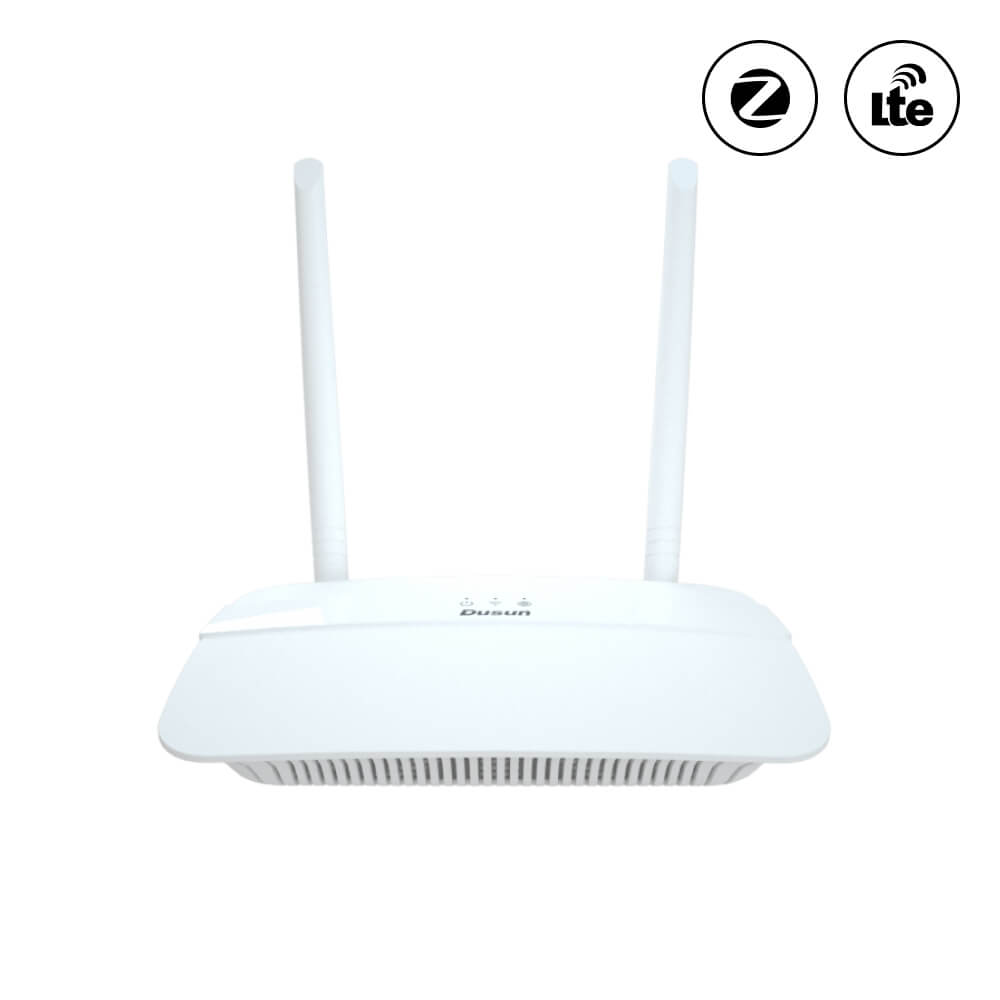

Quick View of DSGW-021-3 Wi-Fi Zigbee Router Gateway
DSGW-021-3 WiFi Zigbee 3.0 router not only ensures lightning-fast Wi-Fi access but also opens the door to a world of Zigbee connectivity. Engineered with the cutting-edge MT7628AN processor, this router integrates the latest IEEE 802.11ac Wi-Fi standard for both 2.4GHz and 5GHz bands, delivering a robust and high-speed wireless experience.
Meanwhile, DSGW-021-3 follow Zigbee 3.0 standard, capable of connect and manage a multitude of Zigbee devices, turning your living spaces into intelligent environments that respond to your needs effortlessly.
With the DSGW-021-3 WiFi router with Zigbee connectivity at the heart of your network, you’re not only gaining access to high-speed Wi-Fi but also to the endless possibilities of Zigbee-enabled automation.
Features of DSGW-021-3 Wi-Fi Zigbee Router Gateway
Coming with Zigbee3.0, Wi-Fi 2.4G/5G. Sending the captured data to the cloud with Wi-Fi, Ethernet, and LTE Cat4.
Carrier-certified for immediate deployments and meets a comprehensive range of regulatory and industry standards worldwide. Accelerating your product development and get to market faster.
Hardware and Dimension of DSGW-021-3 Wi-Fi Zigbee Router Gateway
Parameters of DSGW-021-3 Wi-Fi Zigbee Router Gateway
| CPU | MT7628AN 600MHz processor |
| OS | OpenWrt |
| RAM | 128MB |
| Flash | 16MB |
| Power Supply | DC input with a voltage range of 4.5V to 5V. The power seat aperture is 3.5mm and the needle diameter is 1.35mm, with a positive polarity. |
| Reset | Factory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds |
| SIM | 1 * Micro SIM slot |
| Interface | • 1 * 10/100Mbps LAN Port • 1 * 10/100Mbps WAN Port |
| Indicator LEDs | • The Zigbee/BLE LED flashes when a signal is received. • The Network LED indicates RED when no establishing a network connection. • The Network LED indicates GREE when a network connection is established. |
| Antenna | 1 * 4G LTE FPC antenna，2 * 2.4G/5G External On-Board antenna |
| Installation | Flat, Ceiling |
| Weight | TBD |
| Operating Temperature | -0℃~40℃ |
| Storage Temperature | -40℃~65℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| IP Rating | IP 22 |
Use Cases of DSGW-021-3 Wi-Fi Zigbee Router Gateway
Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.
Conference Room
Remote Area
Private Villa
Temporary Store
Developer Resources of CDGW-021-3 Gateway
| Development | ||
|---|---|---|
| [QUICK START] | DSGW-021 Smart Programmable Gateway SDK Quick Start Guide v1.0.pdf | V1.0 |
| [SDK] | DSGW-021_sdk_AV4.8.314.4317008.tar.gz | V4.8.314 |
| [Firmware packaging] | DSGW-021-standard_AV4.8.314.4317610 | V4.8.314 |
| [Zigbee module firmware] | DSI-0134-Amber-Zigbee_RV6.zip Version：ezsp ver 0x06 | V ezsp ver 0x06 |
| [Ble module firmware] | DSI-0177-Amber-BLE-NCP_AV3.2.4.0129.zip Version：3.2.4.297 | V 3.2.4.297 |
DSGW-021-3 Wi-Fi Zigbee Router Gateway Model List
| Feature | Wi-Fi 2.4G/5G | LTE Cat4 | BLE | Zigbee |
|---|---|---|---|---|
| DSGW-021-3 | ● | ● | ● |
