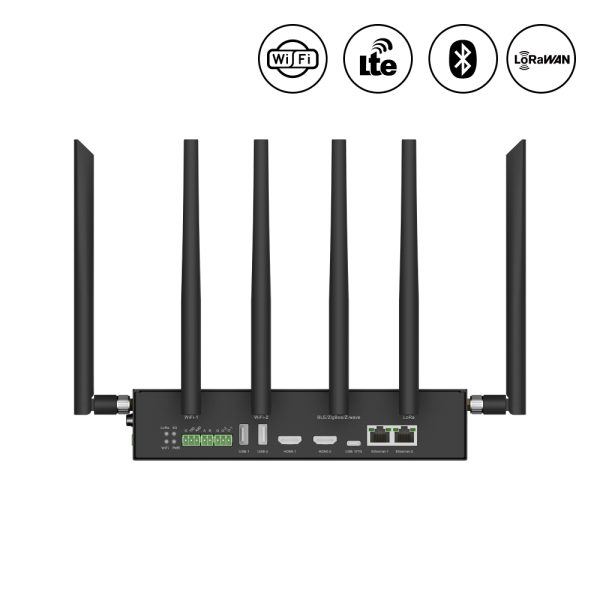

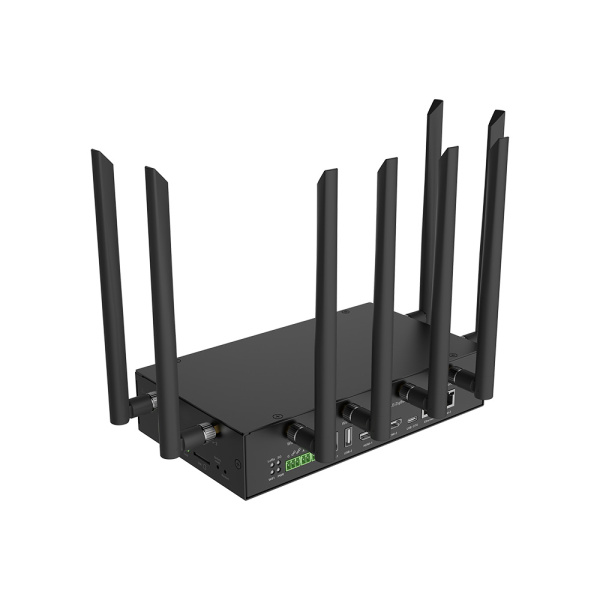

Overview of DSGW-380-1 Industrial AI Edge Computing LoRaWAN 5G Wi-Fi6 Gateway
DSGW-380-1 industrial LoRaWAN gateway offers several backhaul options including 5G LTE, Ethernet, and Wi-Fi6(IEEE 802.11ax). lt facilitates automatic switching between various backhauls and ensures a consistent online connection through auto link detection.
Powered by Rockchip RK3588, one of the most popular IoT SoCs in the AIoT field, DSGW-380 offers excellent edge computing capability. Rockchip RK3588 SoC is a high-range SoC made in 8nm process technology, integrated 8-core 64-bit ARM architecture, with 4 Cortex-A76 plus 4 Cortex-A55 and Mali G610 MC4 graphics processor, supporting 8K decoding and 6 Tops computing power.
DSGW-380 Industrial AI Edge Computing LoRaWAN 5G Wi-Fi6 Gateway supports a variety of industrial real-time Ethernet and fieldbus protocols. This comprehensive connectivity suite makes it compatible with diverse industrial applications such as robotics, intelligent manufacturing automation, and smart infrastructure for industry 4.0.
Due to its robust features like rugged industrial design, DSGW-380 ensures durability and suitability for harsh conditions. It has a active fan cooling system to maintain the gateway’s optimal operating temperature, ensuring consistent performance, especially during intensive AI computations. Meanwhile, its rich interfaces provide integration options for a wide range of devices and sensors, making it versatile for a wide variety IIoT use cases.
Features of DSGW-380-1 Industrial AI Edge Computing LoRaWAN 5G Wi-Fi6 Gateway
DSGW-380 delivers unprecedented data exchange and connectivity experience in spades and is poised to supercharge your industrial edge machine learning applications. The support for 5G, Wi-Fi 6, and two Gigabit Ethernet ports ensure that your data moves at exceptional speed in real time, with less latency. While the rich array of interfaces ensure seamless integration
The DSGW-380 supports full-stack embedded software development. By utilizing the integrated SDK and Wireless Module driver.it enables developers to build low-leveland custom applications.
Adaptable to Multiple Programming Languages： Java, C,C++,Python
Armed with a NPU boasting a formidable computing capacity of up to 6 TOPS (Trillions of Operations Per Second), DSGW-380 will revolutionize the way you harness artificial intelligence and machine learning capabilities on the IoT edge, not only about processing speed, but also the adaptability to handle the most intricate AI tasks on the edge of your network.
In addition to offering comprehensive APIs that streamline the IT application development process the DSGW-380 supports MQTT,TCP,and HTTP protocols. It enables users to build applications on major IloT Clouds like Azure loT Edge efficiently and caters to private cloud platforms.
DSGW-380 is designed to thrive in the harshest environment with the durability and robust construction. With an operating temperature range spanning from -25℃ to 75℃, it is engineered to endure the most demanding conditions with flexible installation options including DIN-Rail and Wall Mounting. FCC, CE, SRRC certification ready. ESD, environmental reliability tested.

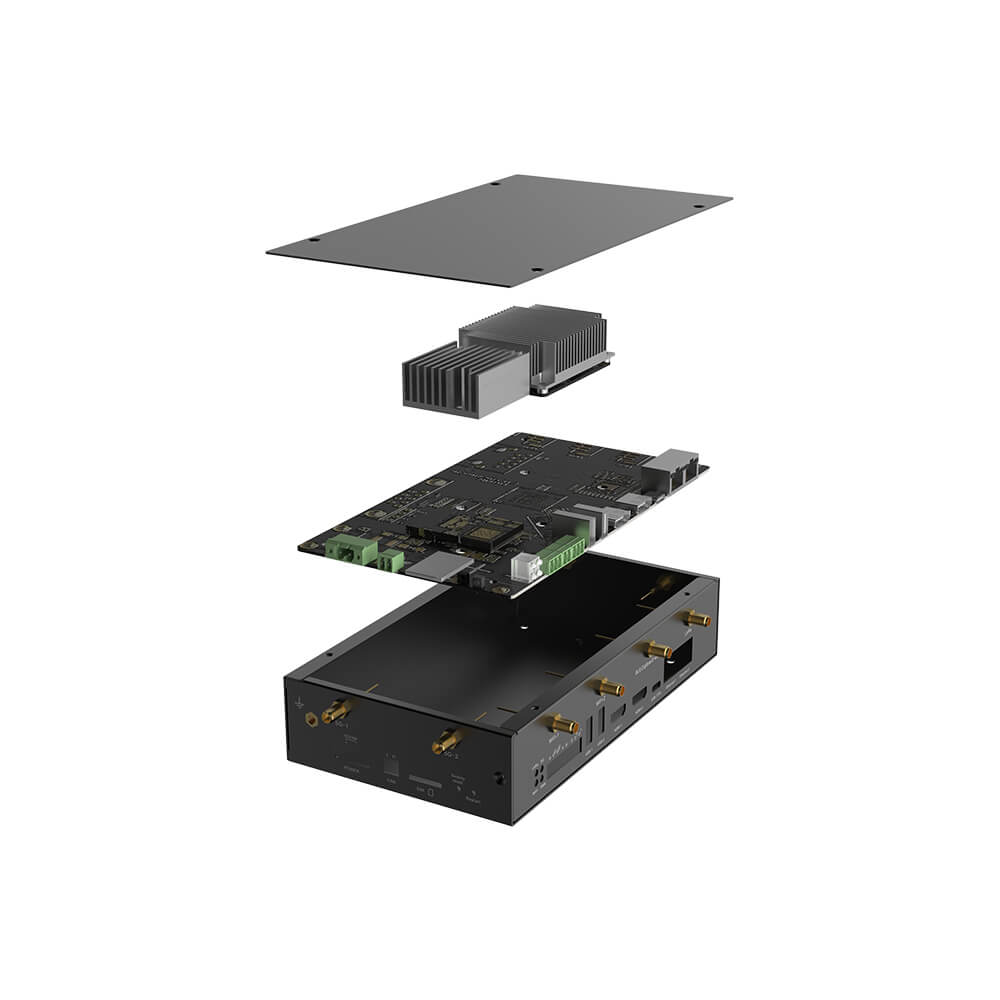

Inner Board of DSGW-380-1 Industrial AI Edge Computing LoRaWAN 5G Wi-Fi6 Gateway
- RS-232 Serial
- RS-485 Serial
- CAN
- USB 3.0
- HDMI
- Type-C
- RJ45 Port
Parameters of DSGW-380-1 Industrial AI Edge Computing LoRaWAN 5G Wi-Fi6 Gateway
| CPU | RK3588 Quad-core ARM Cortex-A76 and Quad-core ARM Cortex-A55 |
| System | Debian 11 |
| RAM | 8 GB LPDDR4 |
| Storage | 128 GB eMMC |
| Power Supply | Input: DC 12V/4A |
| Indicator LEDs | The Power LED remains GREEN when the device is on. The 5G LED flashes BLUE when functioning correctly. The Wi-Fi LED flashes BLUE when operating properly. The LoRa LED remains BLUE when functioning correctly. |
| Reset Button | Factory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds. |
| I/O Port | IO1/IO2 DI DO AI |
| Ethernet | 2 * RJ45 Gigabit |
| SIM Card Slot | 1 * SIM Card Slot |
| Antenna | 1*BLE, 4*LTE(5G), 1*LoRa, 2*Wi-Fi(2.4G/5G) |
| RS232 | 1*RS232 |
| RS485 | 1*RS485 |
| CAN | 1 |
| HDMI | 2 |
| USB Port | 2*USB 3.0 |
| OTG 2.0 | USB Type C |
| Installation | DIN-Rail, Wall Mounting |
| Protection Rating | IP 30 |
| Shell Material | Aluminum alloy |
| Storage Temperature | -40℃~85℃ |
| Operating Temperature | -25℃~75℃ |
| Ambient Humidity | 5~95% |
Use Cases of DSGW-380-1 Industrial AI Edge Computing LoRaWAN 5G Wi-Fi6 Gateway
Developer Resources DSGW-380-1 Industrial AI Edge Computing LoRaWAN 5G Wi-Fi6 Gateway
| Development | ||
|---|---|---|
| [QUICK START] | DSGW-380 RK3588 Industry AI Edge Computer Gateway V1.0-(1) (1).pdf | V 1.0 |
| [SDK] | DSGW-380-Debian_sdk_RV1.1.1.tar.gz | V 1.1.1 |
| [Firmware packaging] | DSGW-380-debian11-xcfe_image-AV1.0.3.img.tar.gz | V 1.0.3 |
| [Ble module firmware] | DSI-0177-Amber-BLE-NCP_AV3.2.4.0129 Version：3.2.4.297 | V 3.2.4.297 |
| Tools | ||
|---|---|---|
| [Burning tool] | AndroidTool_Release | |
| [Upgrade_tool] | DriverAssitant_v4.91 | V4.9.1 |
| Third-Party Software | ||
|---|---|---|
| [Node-RED] | node-red | |
| [Docker] | docker | |
| [Ble2Mqtt] | BLE2Mqtt message API v1.7 | V1.7 |
| [Zigbee2Mqtt] | Zigbee2Mqtt Source Code & How To Install and Deploy[Dusun] | V 2.2 |
| [Openthread] | OpenThread For OTBR | |
| [Matter] | Matter Developer Document Matter Chip-tool Document | |
DSGW-380-1 Model List
| Feature | Wi-Fi 6 | 5G | RS232 | RS485 | LoRa | BLE5.2 | Ethernet |
|---|---|---|---|---|---|---|---|
| DSGW-380-1 | ● | ● | ● | ● | ● | ● | ● |
