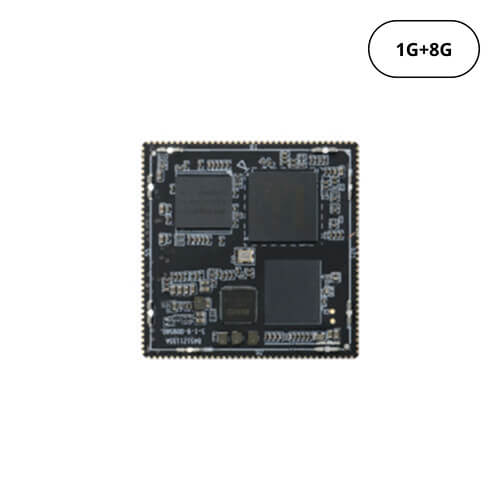

Quick View of DSOM-020R-K Rockchip PX30K Industrial Computer on Module
This Industrial Product SoM based on Rockchip PX30K boasts a multitude of audio and video interfaces, making it ideal for playing high-definition videos, handling complex interactive operations, and providing a rich set of connectivity options. It supports various display interfaces such as MIPI, LVDS, and RGB, and its capacitive touch capability can be further expanded with USB or serial port resistive touch. With AC97/IIS support, it facilitates audio recording and playback.
DSOM-020R-K is a versatile solution, suitable for dual-screen setups and compatible with MiPi display interfaces. It also supports serial/IO expansion and auxiliary light interfaces for MiPi cameras. Designed to withstand harsh conditions, its can operate reliably in temperatures ranging from -10°C to 70°C. Its robust performance ensures stable operation around the clock, making it an excellent choice for a wide range of industrial applications.
System Block Diagram of DSOM-020R-K Rockchip PX30K Industrial Computer on Module
Parameters of DSOM-020R-K Rockchip PX30K Industrial Computer on Module
| CPU | Quad-core 64-bit Cortex-A35, frequency up to 1.3 GHz |
| GPU | Embedded ARM G31-2EE GPU makes the PX30K fully compatible with OpenGL ES 1.1/2.0/3.2, DirectX 11 FL9_3, OpenCL 2.0, and Vulkan 1.0. Built-in embedded high-performance 2D acceleration hardware |
| RAM | LPDDR3 1GB |
| Storage | eMMC 8GB |
| Power Management | RK809-1 Dynamic adjustment of the output voltage of each DC-DC converter |
| Operating Voltage | Typical voltage 5V/1.5A |
| RTC Input Voltage | Typical voltage 5V/30 uA |
| OS | Android/Debian |
| Temperature | Operating Temperature: -20 °C ~85 °C Storage Temperature: -40 °C ~85 °C |
| Humidity | 10~95%(Non-condensing) |
| Barometric Pressure | 76Kpa ~106Kpa |
| Size | 45mm×45mm x 2.6mm |
| Ethernet | 1-channel 10M/100MHz Ethernet interface requires an external PHY chip |
| LCD | Support MIPI, LVDS, RGB Interface |
| Touch | Capacitive touch can be expanded with USB or serial port resistive touch |
| Audio | AC97/IIS, Support recording and playback of audio |
| TF Card | 1 X SDIO Output Channel |
| I2S | 1 X 8-Channel I2S interface |
| SDIO | 1 X SDIO |
| eMMC | Onboard eMMC interface, the pins are not additionally led out |
| USB 2.0 | 2-channel USB 2.0 interface, one of which is a USB OTG interface |
| UART | 6 X Serial Port, except for UART2, the other four channels support serial flow control |
| PWM | 8 X PWM Output |
| I2C | 4 X I2C |
| SPI | 2 X SPI |
| ADC | 3 X ADC |
| Camera | 1 X MIPI CSI camera input interface or parallel camera input interface. |
| Upgrade | Support local upgrade via USB interface. |
Use Cases of DSOM-020R-K Rockchip PX30K Industrial Computer on Module
Developer Resources of Rockchip PX30K Industrial Computer on Module
| Coreboard Development | ||
|---|---|---|
| [Software Quickstart] | DSOM-020R SDK Quick Start Guide V1.1.pdf | V1.1 |
| [Hardware Quickstart] | DSOM-020R PX30K Key Components of Development Board Manual | |
| Ubuntu | ||
|---|---|---|
| [Software Quickstart] | DSOM-020R SDK Quick Start Guide V1.2.pdf | V1.1 |
| [Ubuntu SDK] | DSOM-020R-UT-SDK-RV.1.0.0.tar.gz | |
| [Ubuntu Firmware] | DSOM-020R-UT-RV1.0.1.tar.gz | V1.0.0 |
| Yocto | ||
|---|---|---|
| [Software Quickstart] | DSOM-020R-Yocto SDK Quick Start Guide V1.0.pdf | V1.1 |
| [Yocto SDK] | DSOM-020R-YT-SDK-New | |
| [Yocto SDK Core] | DSOM-020R-YT-SDK-Core | V1.0.0 |
| [Yocto Firmware] | DSOM-020R-YT-AV1.0.0.tar.gz | V1.0.0 |
| Carrier Board Development | ||
|---|---|---|
| [Carrier Board Datasheet] | DSOM-020R PX30K Key Components of Development Board Manual | |
| [Carrier Board Shematic] | DSOM-020R PX30K Carrier Board Shematic.pdf | |
| [Hardware Developmemt Guide] | DSOM-020R PX30K Development Board Hardware Manual V1.1 | V1.1 |
| Tools | ||
|---|---|---|
| [Flash Tool] | AndroidTool_Release | |
| [Driver Assistant] | DriverAssitant | |
DSOM-020R-K Model List
| Model | RAM | eMMC |
|---|---|---|
| DSOM-020R-K | 1GB | 8GB |
