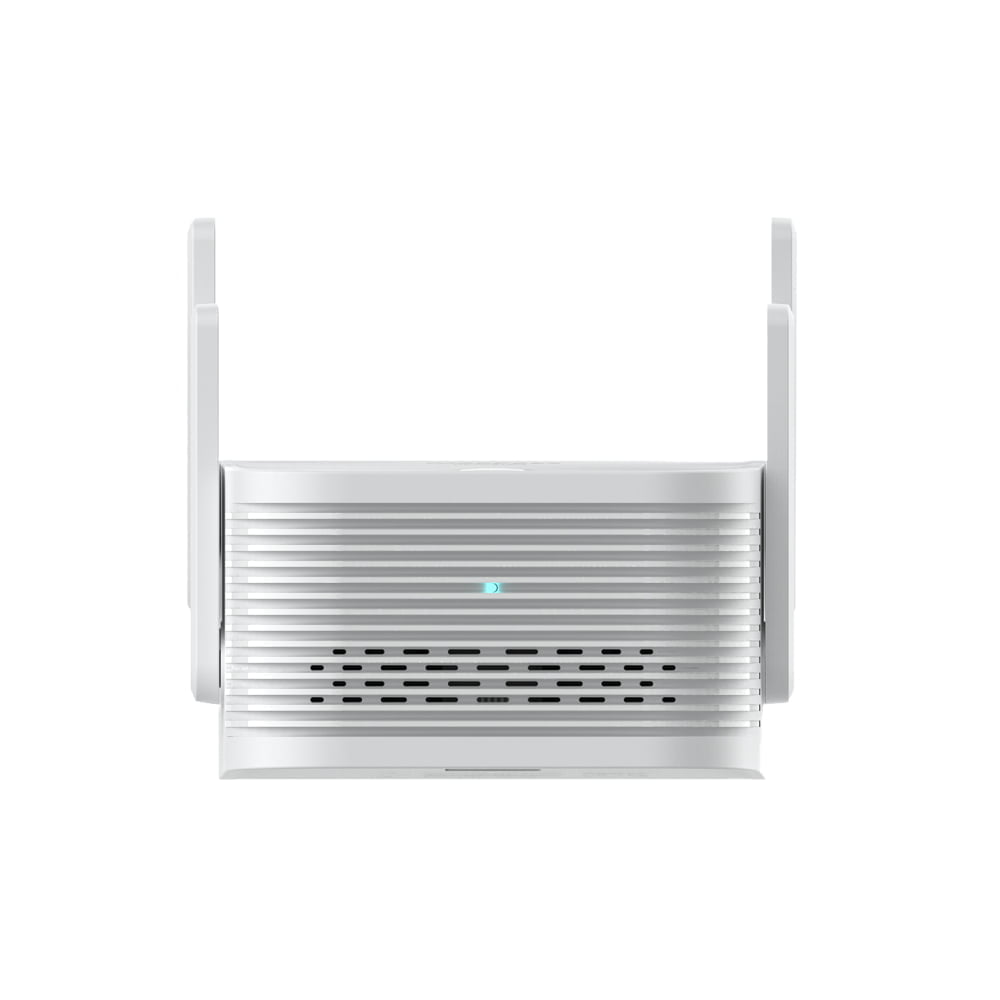

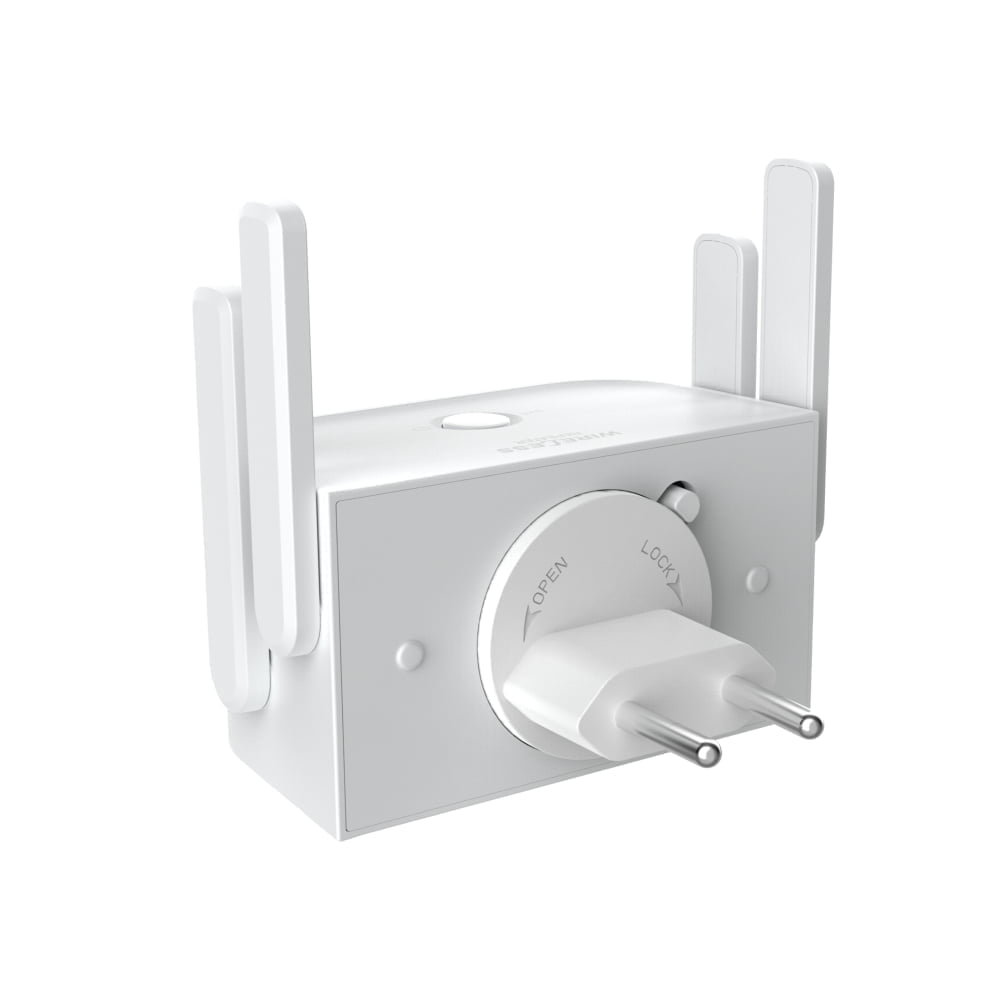

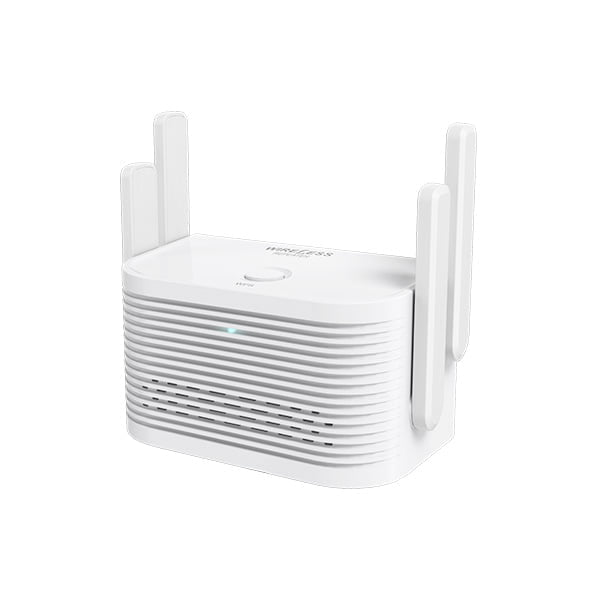

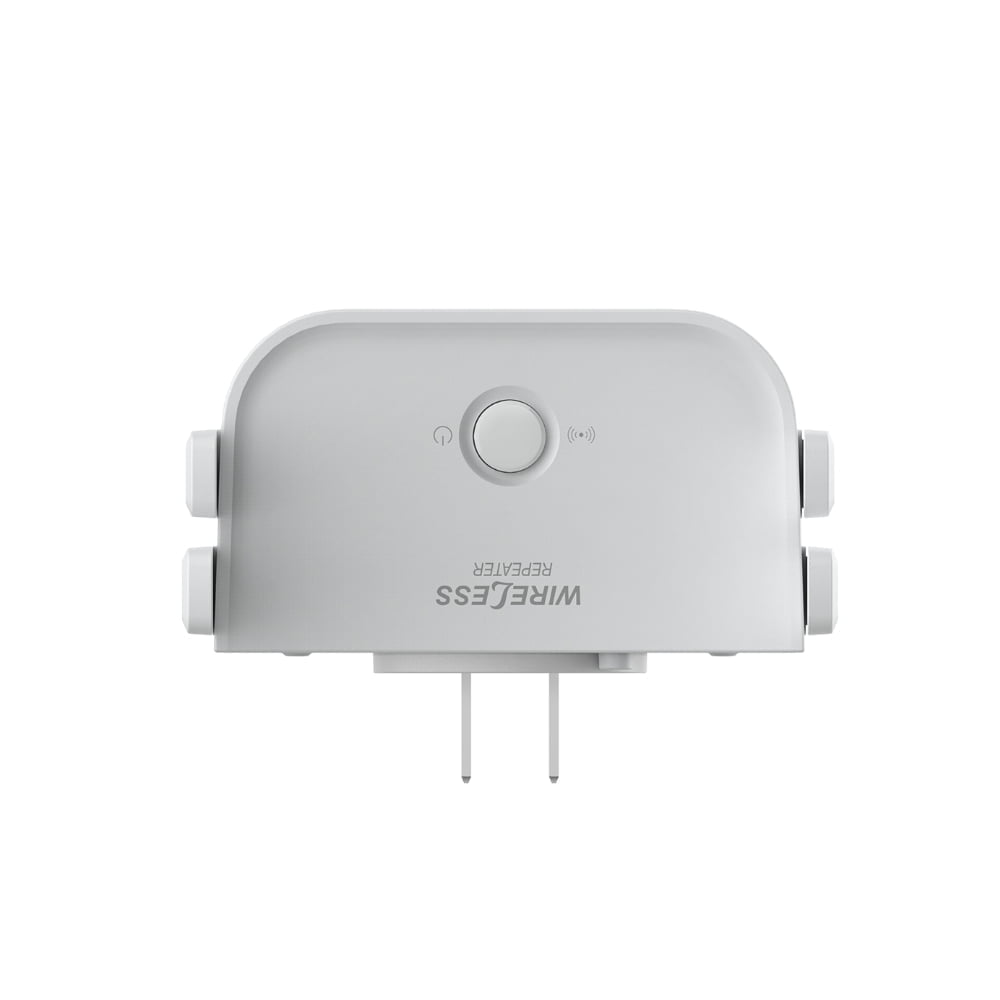

Quick View of DSGW-075
- Support 100-240V AC power supply
- Support IEEE802.11ac, IEEE802.11n, IEEE802.11g, IEEE 802.11b Protocol;
- Support Bluetooth 5.0;
- Support zigbee 3.0;
- RoHS compliance(Lead-free)
- FCC,CE compliance
- OpenWrt OS
Parameters of DSGW-075
| Category | Specifications |
| CPU | MT 7628A |
| RAM | Up to 128 MB |
| System | OpenWRT |
| Power Supply Port | Input:100V~240V AC/50~60HZ |
| Multi-Country Adapter | US, AU, UK, EU |
| Reset button | The reset button inside gateway, After pressing the reset button for more than 5 seconds, the Wi-Fi unit will be restored to the factory settings. |
| Network Interface | The network interface supports CAT-5/CAT-5E to transmit data and POE Power Supply (voltage range is 44~ 57V). It is a WAN/LAN variable. |
| Indicator LEDs | 1).Power LED normally on when powered on 2).Network LED normally on when connected |
| Operating Temperature | -10℃~70℃ |
Features of DSGW-075
|
Extend your Wi-Fi coverage and enjoy ubiquitous web surfing
Multi-Protocol Smart Gateway
Coming with Wi-Fi 2.4G/5G, Zigbee 3.0. |
 |
 |

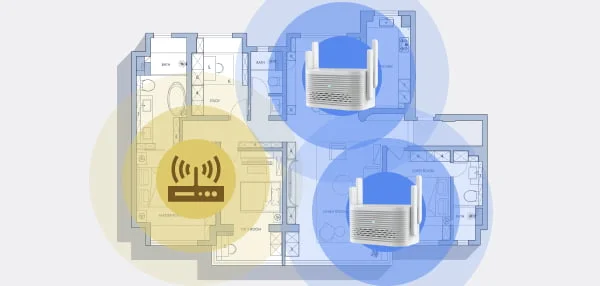

More features than a most common Gateway
2.4 GHz / 5 GHz Dual Band Amplifier with Ethernet Port, Gatwway and Wi-FI Repeater. |
|

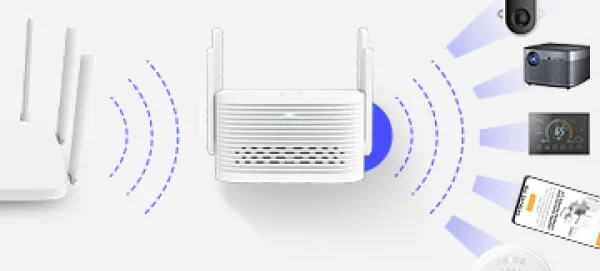

Universally Compatible
Compatible with standard routers, access points, as well as service provider gateways. |
 |
Dimension and Package List of DSGW-075

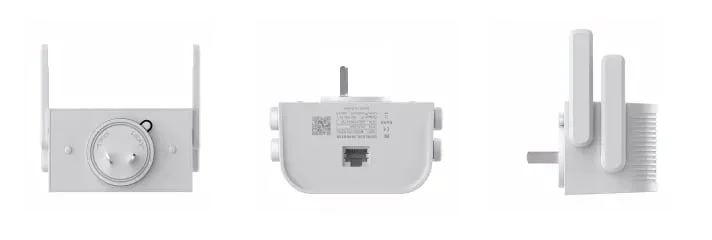

 Multi-angle show

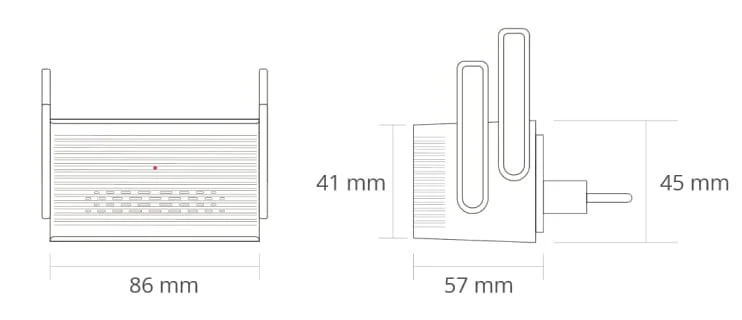

 Dimension |

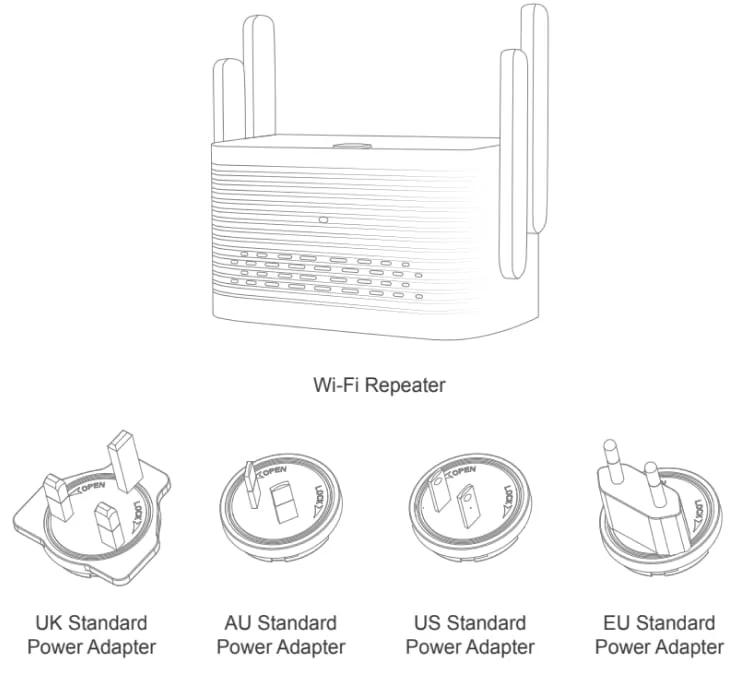

 Package List |
Use Cases of DSGW-075
 Smart Home |
 Smart Apartment |
 Multifamily Properties |
 Building Automation |
